Dimensions
• Deck Length: 144 inches (12 feet)
• Deck Width: 72 inches (6 feet)
• Side Height: 12 inches (standard)
Weight & Capacity
• GVWR: 2,990 lbs
• Trailer Weight: ~980 lbs
• Payload Capacity: ~2,010 lbs
• Axle: 3,500 lb idler axle
Construction & Features
• Frame: 2x2x3/16 angle steel
• Tongue: 3″ channel A-frame
• Suspension: Leaf spring
• Coupler: 2” A-frame
• Jack: 2,000 lb top-wind pole jack
• Deck: Pressure-treated wood

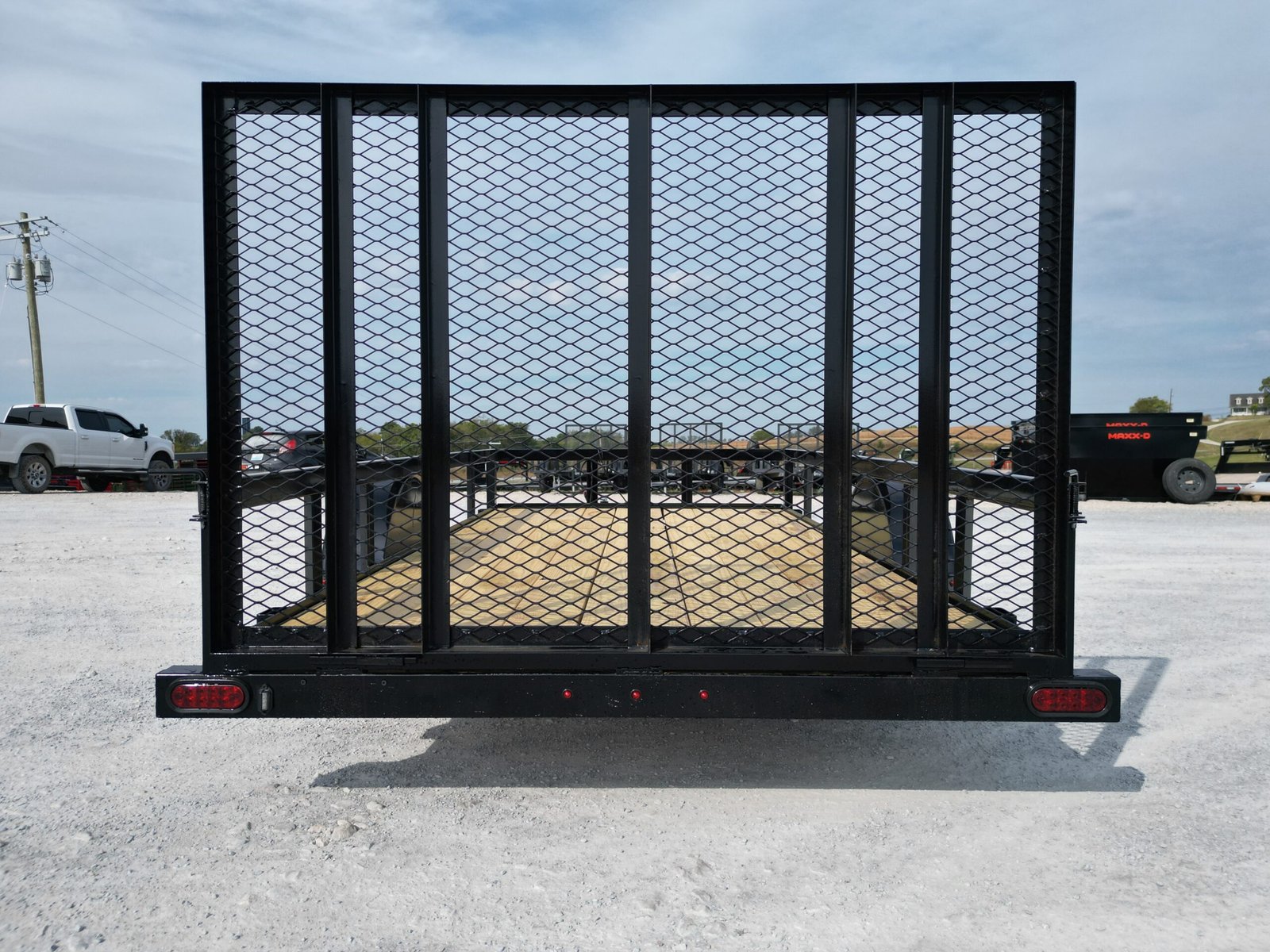

• Gate: 4′ mesh ramp gate with spring assist
• Lighting: DOT-approved LED
• Plug: 4-pin wiring harness
• Safety Chains: ¼” Grade 30
• Top Rail: 3×2 square tube
• Crossmembers: 2x2x3/16 steel
• Tires/Wheels: 205/75/R15, 5-lug
• Spare Tire Mount: Included
• Mesh Sides: Optional 1′ mesh sides available
Warranty
• 3-year manufacturer warranty
• 5-year axle warranty
